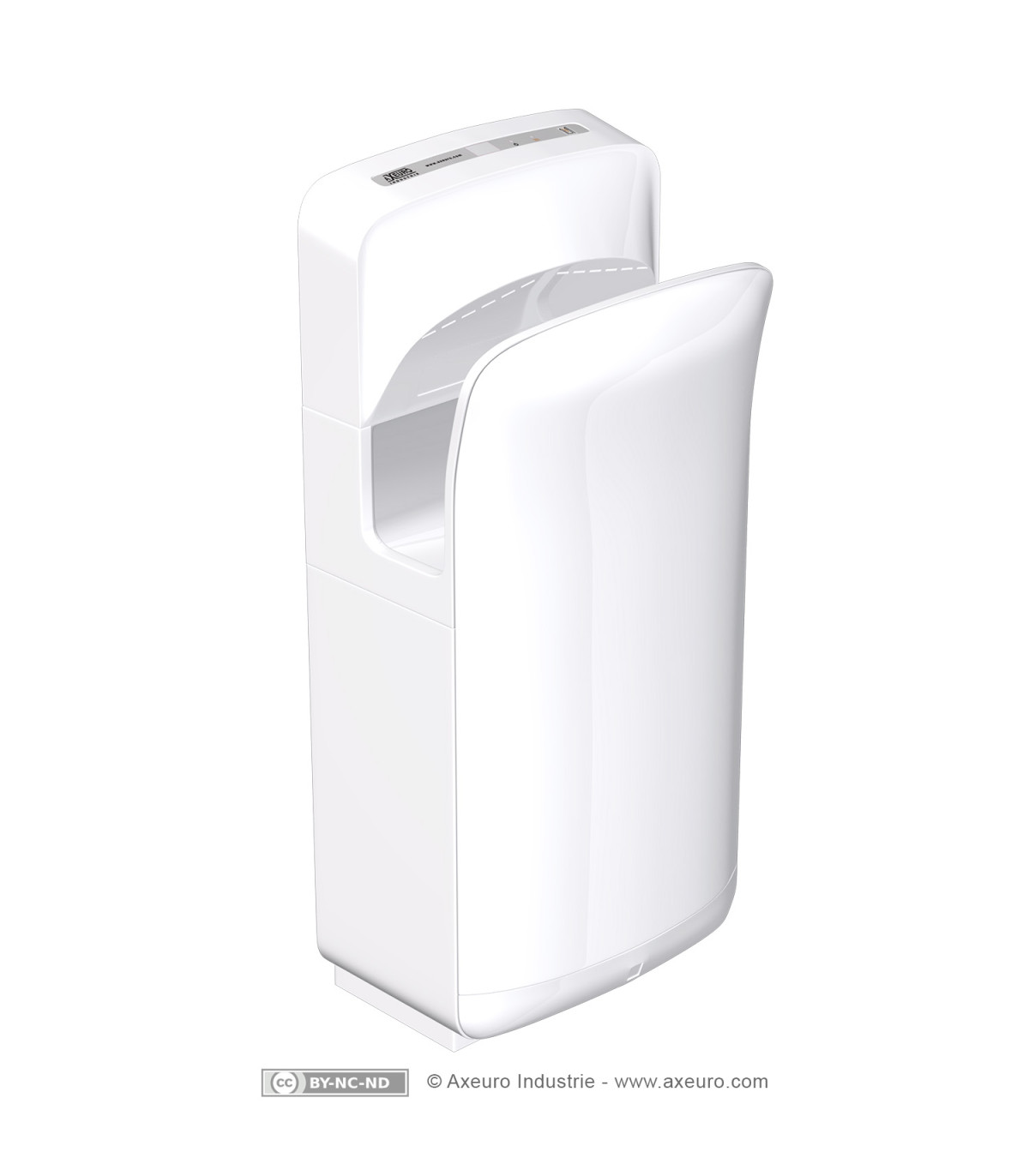

Ultra-Fast Touchless Air Hand Dryer
Contactless high-speed hand dryer, featuring infrared activation and an ultra-fast 7-second drying time. Made of ABS, it is available in satin metallic finish (Silver) or white lacquered, with or without heating depending on the reference. It features a HEPA filter, an antibacterial filter, a water collector with a visible level, and IPX4 protection. Models equipped with a brushless motor offer increased lifespan and reduced maintenance.
5 products are available (select your choice from the menu).
Pour faire une demande de devis, procédez ainsi :
- ajouter les produits au panier
- dans la page panier, cliquez sur "Demander un devis"
MATERIALS :
ABS
DIFFERENT FINISHES AVAILABLE (select your choice) :
ABS in White Lacquered finish, with heating and brushless motor: AX9566W
ABS in Satin Metallic (Silver) finish, with heating and brushless motor: AX9566X
ABS in Satin Metallic (Silver) finish, without heating and with brushless motor: AX9566X-ECO
ABS in Satin Metallic (Silver) finish, with heating: AX9565X
ABS in White Lacquered finish, with heating: AX9565W
CHARACTERISTICS :
Wall-mounted
Infrared activation
Air pulse hand dryer
Power: 630 W - 1900 W (except for AX9566X-ECO: 630 W - 800 W)
Quiet: 70 dB
IPX4
With HEPA filter
Drying time: 7 seconds
Antibacterial filter for clean and hygienic use
Water collection tank with visible level indicator
Air speed in gentle ventilation mode: 65 m/s
Air speed in high-speed ventilation mode: 95 m/s
Very simple installation and maintenance.
AX9566X, AX9566X-ECO and AX9566W: brushless motor (increased lifespan, reduced maintenance)
SUPPLIED WITH :
Screws / Wall plugs
PACKAGING :
Unit in cardboard packaging
PLACES OF USE :
Public places, public facilities, offices, hotels, restaurants
RECOMMENDED INSTALLATION HEIGHT :
Able-bodied users : Top of the hand dryers at 100 cm for men and women and at 85 cm for children.
PMR / PHMR / UFR : Top of the hand dryers at a height of 90 cm and more than 40 cm from a corner.
More information by clicking HERE.
ADVANTAGES :
AX9566X, AX9566X-ECO and AX9566W are suitable for heavy use (brushless motor)
Environmentally friendly
High-end design
Designed for persons with reduced mobility (accessibility, independence, etc.)
Designed for the hospitality industry
CERTIFICATIONS / WARRANTY :
3-year warranty* for references AX9566X, AX9566W and AX9566X-ECO
2-year warranty* for references AX9565X and AX9565W
CE**
* Total warranty period against manufacturing defects for the product concerned when it is longer than the period provided for in the General Terms and Conditions of Sale. See our General Terms and Conditions of Sale (GTC) at www.axeuro.com
** Manufactured in compliance with European Directives 73/23/EEC & 89/336/EEC 93/68/EEC & RoHS.
Data sheet
- Type of product
- Hand dryer
- Materials
- ABS plastic
- Drying time (seconds)
- 7
- Air Pulse
- Yes
- Activation (automatic or push-button)
- Automatic
- HEPA Filter
- Yes
- Water collection tank
- Yes
- Sound level (dBA)
- 70
- Airflow (m³/h)
- 150
- Air speed (m/s)
- 95
- Adjustable air speed
- Yes
- Adjustable sensitivity / detection distance
- No
- Air outlet with adjustable nozzle (hand dryer / face dryer)
- No
- Motor rotation speed (RPM / revolutions per minute)
- 20000
- Adjustable motor rotation speed
- Yes
- Rated power (W)
- 2050
- Class
- II
- IP
- IPX4
- Number of safety protections
- 1
- Automatic shut-off in case of excessively long continuous use (vandalism detection) (s)
- 25
- Standby power consumption (W)
- 1-2
- Air outlet temperature at ambient temperature (20°C) (°C)
- 20-40
- Adjustable operating time
- No
- Mains voltage / Input frequency
- 220-240V / 50-60 Hz
- Product width (in mm)
- 300
- Product height (in mm)
- 687
- Depth (in mm)
- 220
- Installation type
- Wall-mounted ·✓
- Comes with
- Screws, dowels
- Packaging
- Unitary in a cardboard
- Place of use
- Public places, communities, offices, restaurants, hotels
- Recommended installation height for able-bodied people
- Top of the hand dryer at 100 cm for men and women and at 85 cm for children.
- Recommended installation height for people with disabilities
- Top of the hand dryer at a height of 90 cm and more than 40 cm from a corner.
- Environmental impact
- Green Product
- Appearance, style
- High-end design
- Accessibility
- Designed for people with reduced mobility (accessibility, independence, etc.) ·✓
- Medical sector
- Product suitable for healthcare establishments (hospitals, etc.)
- Hospitality sector
- Designed for the hotel industry
- Tertiary sector
- Product suitable for businesses (offices, etc.)
- Public-access building
- Product suitable for public, collective places...
- CE marking**
- Yes
